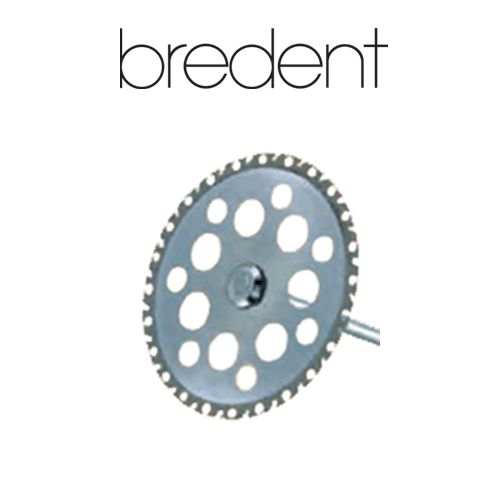

Giflex-TR is a disc for handpieces that features diamond-coating on both sides and is especially suitable for cutting dies out of plaster, refractory and resin. Calculated chip spaces in the area of the diamond coating ensure quick removal of the grinding dust and increase the cutting performance of the disc. Giflex-TR allows for quick, smooth, and reliable cutting even of very hard plaster and resin. Troublesome chattering and jamming of the disc is avoided.
Larger holes in the diamond free section reduce the friction heat. The disc will not overheat even if deep cuts are carried out. The running transparency allows for a better view into the saw cut.
0.37 mm: The universal disc
_ Shaft diameter: Standard 2.35 mm
_ Diameter: 37 mm
_ Thickness: 0.3 mm
_ Recommended Speed: 15,000 - 18,000 RPM
0.30 mm: Perfectly suitable for extremely difficult space condition
_ Shaft diameter: Standard 2.35 mm
_ Diameter: 30 mm
_ Thickness: 0.3 mm
_ Recommended Speed: 15,000 - 20,000 RPM
0.25 mm: For difficult work
_ Shaft diameter: Standard 2.35 mm
_ Diameter: 25 mm
_ Thickness: 0.3 mm
_ Recommended Speed: 20,000 RPM
The grinding dust is removed quickly through the perforations in the diamond free area so that jamming of the disc is avoided.
