NSK Surgical Surgic AP
Made in Japan
Contents:
- Control Unit
- Non-Optic Micromotor (SG50MS)

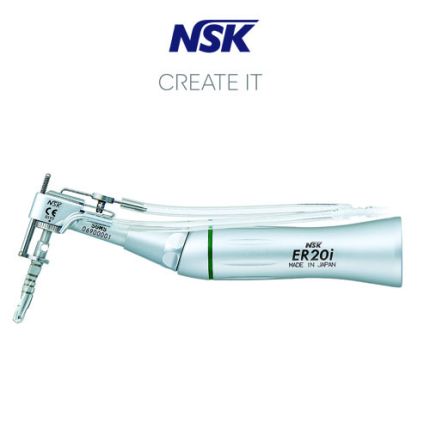

- SG20 Handpiece (20:1 Reduction)
- FC-55 Foot Control (IPX8 certified)
- Handpiece Stand

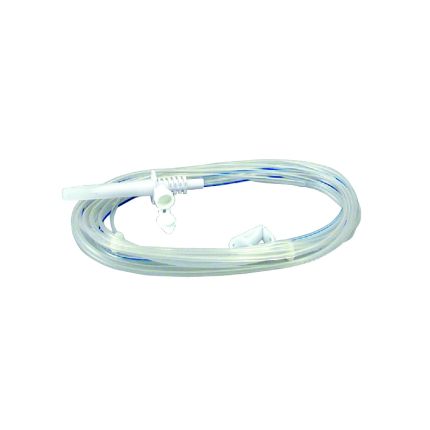

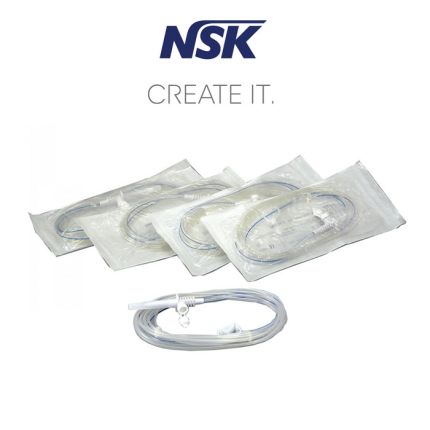

- Irrigation Tube (5 pcs.) and Other Accessories
Specifications:
1. Micromotor (SG50MS)
- Motor Speed : 200~40,000 min-1
- Non-optic
- Brushless
2. Foot Control (FC-55)
- Speed Control : Variable
- IPX8 certified
NSK Surgical Surgic AP
Control Unit
|
Max. Output/Max. Torque |
210 W / 50 Ncm |
|
Power Supply |
AC 230 V 50/60 Hz |
|
Max. Pump Output |
75 mL/min |
|
Programs |
8 Programs |
|
Dimensions |
W 275 x D 207 x H 101 (mm) |

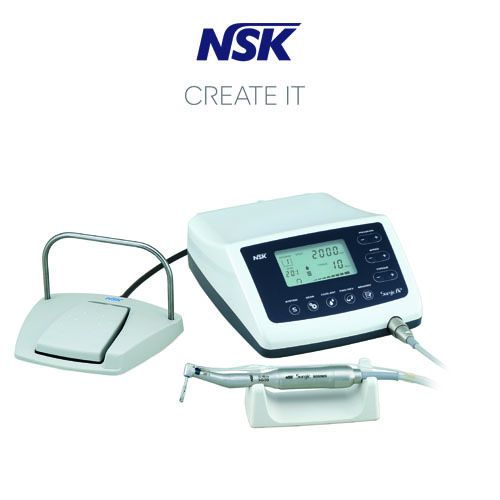

Surgic AP Non-Optic Complete Sets With S-Max SG20 Handpiece
Provides Solid Performance for Surgical and Implant Procedures Designed specifically for oral and implant surgery, Surgic AP delivers all the power and performance you ever need for these procedures. 210 Watt power and 50 Ncm torque, together with a wide speed range of 200-40,000 min-1 offers the flexibility and fast response required for a variety of surgical procedures. The compact console is user-friendly, simple to operate and has been specifically designed for the aseptic theatre environment.
8 Individual Program Option
NSK Surgic AP can memorise 8 complete program options. Each program includes speed, torque, coolant flow, and rotation direction. Program settings continue to be stored even when supply power is turned off. Each program setting can be easily modified during operation. To save a program parameter you simply press and hold the Memory button.
Large User Friendly LCD
The Large LCD display offers immediate recognition of the selected operational program data.
Powerful External Pumps
Surgic AP guarantees you optimum irrigation capacity and simple mounting with an external powerful water pump. The Surgic AP pump is easily detachable and can be repeatedly autoclaved.
User Friendly Foot Control
The Surgic AP foot control (FC-55) is simple to operate and conforms to IPX8 - the standard for medical foot control devices and certification for operating theatre use. (forward direction only)
