Ugin Burnout Furnace Programix 100

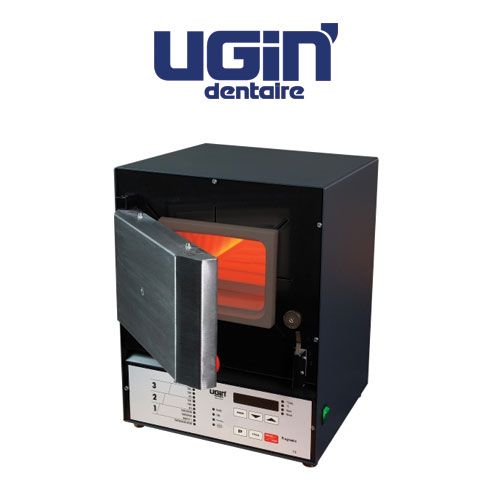

PROGRAMIX 100 Burnout Furnace

Advantage:

• High thermal yield, reduced energy consumption.

• Compact size.

• Modular electronic panel.

• Protection against corrosion (electrogalvanized steel and epoxy paint).

• Stainless steel door.

• Monobloc cast ceramic muffle.



• Maximum temperature in continuous service: 1050 °C

• Maximum temperature at peak: 1150 °C

• Time programming: 0 to 100h

• Temperature rise with regulated control: 1 to 15 °C/min

• Temperature rise full power position: 16 °C +/min

• Program regulation 0 to 19: 3 stages

• Program regulation 20 to 29: 6 stages

• Electric power supply: 230V, 50/60Hz

• Nominal power: 3000W

• Smoke extract. connection: 230V

• Furnace dimensions Height / Width / Depth: 600 x 465 x 560 mm

• Chamber dimensions Height / Width / Depth: 150 x 220 x 300 mm

• Number of rings (Diam. 80, Length 55mm): 8 to 12

• Weight: 56kg
