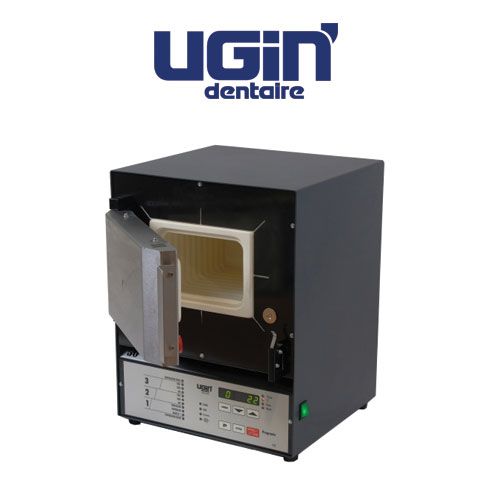

Ugin Burnout Furnace Programix 50

PROGRAMIX 50 Burnout furnace

Advantage:

• High thermal yield, reducced energy consumption.

• Compact size.

• Modular electronic panel.

• Protection against corrosion (electrogalvanized steel and epoxy paint).

• Stainless steel door.

• Monobloc cast ceramic muffle.

Feature:

• Maximum temperature in continuous service: 1050 °C

• Maximum temperature at peak: 1150 °C

• Time programming: 0 to 100h

• Temperature rise with regulated control: 1 to 15 °C/min

• Temperature rise full power position: 16 °C +/min

• Program regulation 0 to 19: 3 stages

• Program regulation 20 to 29: 6 stages

• Electric power supply: 230V, 50/60Hz

• Nominal power: 2000W

• Smoke extract. connection: 230V

• Furnace dimensions Height / Width / Depth: 500 x 390 x 440 mm

• Chamber dimensions Height / Width / Depth: 120 x 170 x 210 mm

• Number of rings (Diam. 80, Length 55 mm): 4 to 6

• Weight: 34kg
