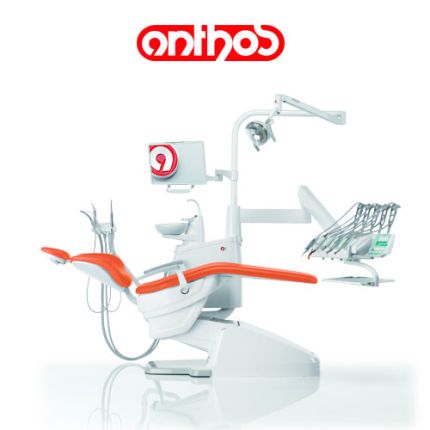

Anthos A5 Plus International Dental Unit

Specification:

Made in Italy (Guaranteed with TWO YEARS WARRANTY)

Model Number

A5 Plus International

Type Of Dental Chair

Fixed

Operation Mode

Electrical

Chair Material

Plastic, Fabric, Metal

Water Unit

Yes

Intensity

Light Intensity 3,000 to 50,000 LUX

Light Type

Venus LED MCT

Sensor

Yes

Spittoon

Yes

Assistant Arm

Yes

Rotation

3 axis rotation

In stock
SKU
A5 Plus Int

<

ANTHOS A5 INT.VERSION

Manufacturer: Anthos – Cefla Dental

Made in Italy (Guaranteed with TWO YEARS WARRANTY)

- New cuspidor bowl, which can be dismantled completely, with removable cup-and-bowl fill unit.

- Surface made of a special plastic that provided long-lasting resistance to the effects of light and cleaning products.

- Integrated multimedia system with digital camera and medical monitor with LED technology.

- Patient chair with cast aluminium structural components type-approved to lift up to 190kg.

- The use of extruded aluminium for the pantograph arm ensures both strength and lightness.

- Instrument levers are made of Nylon to ensure they are able to withstand constant use.

- Cast aluminium armrest to ensure greater solidity and durability.

- The new instrument control panel, made with materials that increase key sensitivity, incorporates a numerical display for greater data reading precision.

GLASS PROTECTED COLOR LCD DISPLAY

- Control console equipped with glass protected display

- Multi profile feature

- Integrated with ENDO & Apex Locator

- Operating lamp ON/OFF

- Fibre optic of instruments ON/OFF (optional)

- Control of micromotor rotation inversion

- Timed warm water cup filler and timed water bowl flush

- Free auxiliary control (ex.:assistant call)

- Activation of: rinse program / automatic return / return to zero position / emergency program.

- Chair movement – memorisation of 4 chair working positions and 2 chair service positions.

CUSPIDOR UNIT

- Chair mounted, equipped with removable glass bowl with 270° rotation.

- Removable and disinfectable cup filler.

- Sensor cup filler

ASSISTANT’S INSTRUMENT

- Fitted on articulated arm.

- it is equipped with one-touch keypad featuring:

  * timed warm water cup filler

  * timed water bowl flush

  * rinse program

  * return-to-zero position activation

  * chair movements

 i-MMs INDUCTION MICROMOTOR (BRUSHLESS) WITH LED LIGHT

- Speed range 100 – 40,000rpm

- Weight – 67 grams

- Delivered torque – up to 5.3 Ncm

- ISO 3964 - Auto-reverse, auto-forward & auto stop.

- Fully autoclavable

- Ready for ENDODONTIC treatment

u-PZ7 ULTRASONIC SCALER (OPTIC)

- Operating frequency: 25 – 32kHz

- Handpiece dimension: Ø19 x 102 mm

- With 4 insert tips (C1, C2, C4 & P1)

Venus LED MCT (Multicolor Temperature)

- Colour temperature:

  * 4,300K (Warm light) for Surgical treatment

  * 5,000K (neutral light) for conservative dentistry

  * 5,500K (cool light) for realistic colour capture

- Light intensity 3,000 to 50,000 Lux with potentiometer / via infrared sensor.

- Power absorption 10W

- Minimum working life 50,000 hours

- 3-axis rotation

- Composite mode ( 430 – 480 nm wavelength)

-Colour Rendering Index (CRI) over 95

Description:

- The International version has been designed with ergonomics very much in mind. Featuring modern design, the dentist’s module benefits from an ergonomic instrument layout, ensuring handpieces can be picked up with ease from any work area. Practicality also stems from the large control panel with colour LCD screen; this gives access to settings for all instruments, the patient chair and integrated accessory devices.

- Extra wide back rest & seat with seamless upholstery for total patient comfort with double articulates headrest

- Aluminum alloy chair to prevent rusting

- Movable right arm rest

- Synchronized movement of seat & backrest

- 7 Programs in the chair which includ 4 programmable working positions, preset auto return to zero, spitting & last working position

- Trendelemburg position for dental emergencies

- Independent up / down chair movements along with back/forth backrest movements

- Safety system on chair base, backrest & assistant side to prevent entrapment

- Chair base can also be used for operating the suctions (high & low)

- The LCD display illustrates instruments speed & other several icons provide information on dental unit / operations.
