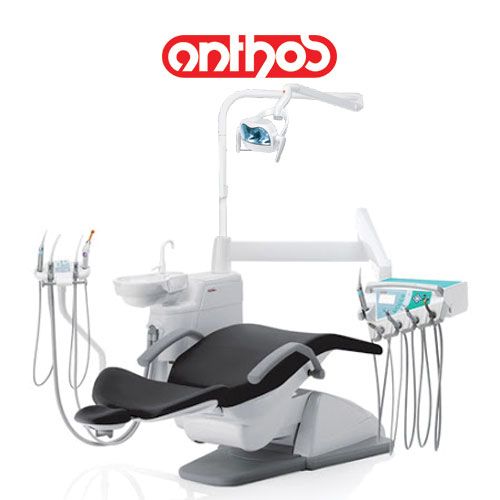

Anthos A3 Plus International Dental Unit

Specification:

Model Number

A3 Plus International

Type Of Dental Chair

Fixed

Operation Mode

Electrical

Chair Material

Plastic, Fabric, Metal

Water Unit

Yes

Intensity

Light Intensity 3,000 to 50,000 LUX

Light Type

Venus Plus L Led

Sensor

Yes

Spittoon

Yes

Assistant Arm

Yes

Rotation

3 axis rotation


Descriptons:

- Option available for extra wide or narrow backrest. Seat with seamless upholstery for total patient comfort with double articulated headrest

- Movable right armrest

- Aluminum alloy chair to prevent rusting

- Synchronized movement of seat and backrest

- 7 Programs in the chair which include - 4 programmable working positions, preset auto return to zero, spitting and last working position

- Trendelenburg position for dental emergencies

- Independent up/down chair movements along with back/forth backrest movements

- Safety system on chair base and backrest and assistant side to prevent entrapment

- Chair base can also be used for operating the sections

- Instrument control panel incorporates with 3 figure numerical display for greater data reading precision


SKU
A3-INT D UNIT
In stock
Only %1 left
Enquiry

ANTHOS A3 INT.VERSION

Manufacturer: Anthos – Cefla Dental

Made in Italy (Guaranteed with ONE YEAR WARRANTY)

- New cuspidor bowl, which can be dismantled completely, with removable cup-and-bowl fill unit.

- Surface made of a special plastic that provided long-lasting resistance to the effects of light and cleaning products.

- Integrated multimedia system with digital camera and medical monitor with LED technology.

- Patient chair with cast aluminium structural components type-approved to lift up to 190kg.

- The use of extruded aluminium for the pantograph arm ensures both strength and lightness.

- Instrument levers are made of Nylon to ensure they are able to withstand constant use.

- Cast aluminium body to ensure greater solidity and durability.

- The new instrument control panel, made with materials that increase key sensitivity, incorporates a numerical display for greater data reading precision.

- Backrests that meets all the dentist’s ergonomic needs. As always, the backrest guarantees patient comfort and easy access.

Standard : Wide back rest

Optional : Narrow back rest

CONTROL PANEL

- 3 digit display to show speed / power of instruments and principal functions.

- X-ray viewer with automatic turn off.

- Control console equipped with one-touch keypad.

- Operating lamp ON/OFF

- Fibre optic of instruments ON/OFF (optional)

- Control of micromotor rotation inversion

- Timed warm water cup filler and timed water bowl flush

- Free auxiliary control (ex.:assistant call)

- Activation of: rinse program / automatic return / return to zero position / emergency program.

- Chair movement – memorisation of 4 chair working positions and 2 chair service positions.

CUSPIDOR UNIT

- Chair mounted, equipped with removable glass bowl with 270° rotation.

- Removable and disinfectable cup filler.



ASSISTANT’S INSTRUMENT

- Fitted on articulated arm.

- it is equipped with one-touch keypad featuring:

  * timed warm water cup filler

  * timed water bowl flush

  * rinse program

  * return-to-zero position activation

  * chair movements

i-MMr INDUCTION MICROMOTOR (BRUSHLESS)

- Speed range 100 – 40,000rpm

- Weight – 67 grams

- Delivered torque – up to 3.3 Ncm

- ISO 3964 - Auto-reverse and auto-forward



u-PZ6 ULTRASONIC SCALER (NON OPTIC)

- Operating frequency: 25 – 32kHz

- Handpiece dimension: Ø19 x 102 mm

- With 4 insert tips

Venus Plus L Led Operating Light

- LED light source

- Colour temperature 5,000K

- Light intensity 3,000 to 50,000 Lux with potentiometer / via infrared sensor.

- Power absorption 10W

- Minimum working life 50,000 hours

- 3-axis rotation

- On-off control via infrared sensor
