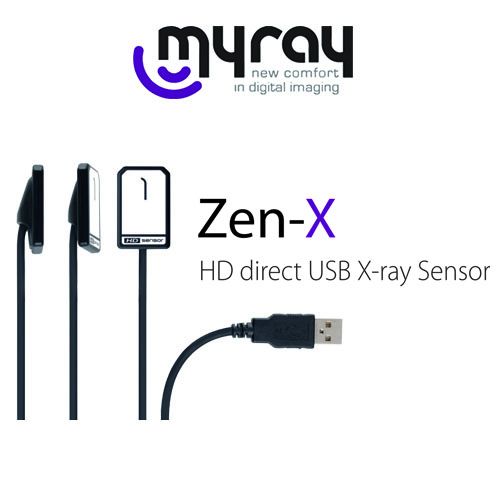

Myray Digital Sensor Zen-X HD

Myray Zen-X HD #2 (Large Area)

External dimensions (mm) : 41.9 x 30.4

Thickness (mm) : 5.7

Pixel matrixl : 1700 x 1300

Pixel size (m) : 20

Maximum resolution (lp/mm) : 25

Grey levels depth : 14-bit acquisition – 16384 maximum grey levels

Scintillator technology : CsI (Cesium Iodide) with micro-columnar structure

Direct exposure protection : FOP (Fibre Optics Plate)

Protection rating IP 67 (Guaranteed against liquid or dust infiltration)

Compatibility with X-ray generators : Any AC or DC technology X-ray generator with kV values in the 60 – 70 kV range and precision control of exposure times


Minimum system requisites

Supported operating systems : Microsoft® Windows® 7 (SP1) – 8 – 8.1 Professional (64 bit recommended); Microsoft® Windows® 10 Professional 64 bit

Display settings : 1280 x 1024; 1344 x 768 or greater, 16 million colours

Port USB : 2.0 or subsequent

Power supply : 5 VDC, 500 mA (via USB)

In stock
SKU
CEE-701A0001

High definition, prompt response, reliability and ergonomics.

Zen-X offers all the benefits of real-time digital technology to obtain and share superior quality images in a user-friendly way.

- Real-time HD diagnostics
- Direct USB plug-and-play connection to display real-time images.
- Easy, fast, portable, real-time
- Always ready, fast, portable. Zen-X is the ideal HD digital sensor to capture the best, high-definition intraoral images and make your workflow more streamlined and efficient.Reliable, sturdy and adaptable
- Slim profile, rounded corners and flexible cable. Maximised active area. Zen-X is dust- and liquid-proof and IP 67-certified.

Direct USB plug-and-play connection to display real-time images.

Capture and immediately view the best, high-definition intraoral images.

With Zen-X you can save time and make communication with the patient more effective thanks to automatic image capturing and direct USB plug-and-play connection.

Latest generator multi-layer HD sensor

The Caesium Iodide Scintillator (Csl) intercepts the X-ray beam converting it into visible light while preserving image quality.

The layer of optical fibres (Fibre Optics Plate) collimates radiation on the sensor and protects it from direct penetration of X rays.

The high definition image capturing device with 20 µm, 14 bit cells  (HD CMOS) converts light into a digital image, which is processed by the on-board electronics, ready to be transmitted to a USB port.

Always ready, fast, portable

Zen-X is the ideal HD digital sensor to capture the best, high-definition intraoral images and make your workflow more streamlined and efficient.

The sensor integrates seamlessly with the all-in-one iRYS (DICOM) software installed on your PC, the iCapture (TWAIN) software, a free image viewer and an APP for iPAD.

ICAPTURE

iCapture is a simple and intuitive capture software with which you can quickly transfer images pre-captured with Zen-X. The capture settings can be easily customised. At the end of a quick transfer procedure, you will be able to view your X-ray images with the processing software or any other image viewer.

IRYS, EASY COMMUNICATION

The sensor integrates seamlessly with the iRYS software installed on the PC: the all-in-one solution for 2D and 3D diagnostics, communication and intraoral imaging management. It provides the most straightforward and comprehensive processing tools: quick browsing through captured images, pre-settable filters and calibration, association to dentition charts and automatic arrangement in pre-definable layouts with which to store and quickly access the patients' X-ray images relating to different treatment sessions.

Ergonomic design

Whatever your medical expertise, Zen-X is a precious partner suitable for all types of examination.

Available in two sizes, it has an ergonomic design with smooth edges, rounded corners and a flexible cord for maximised active area and positioning comfort. It is made of top quality, durable materials and is compatible with all intraoral X-ray generators.

*Maximised active area with minimised footprint.
Thanks to its ergonomic design with smooth edges and availability in two sizes, Zen-X offers maximum comfort and positioning accuracy. The sensor adapts perfectly to the anatomical dimensions of the patient's oral cavity and features a maximised active area for the most effective centring and image acquisition.
*Slim profile
The rounded edges and slim profile ensure a compact footprint that allows for effective sensor positioning and centring. With Zen-X, the best, high definition intraoral images can be captured in any diagnostic scenario.
