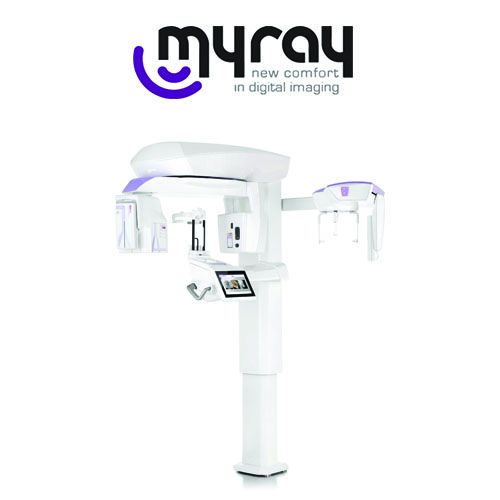

MyRay Hyperion X9 Pro 3D

Made in Italy

Maximum flexibility for your diagnoses. Hyperion X9 pro is fully configurable and its modular and scalable design makes it possible to transition from a basic to a more advanced version in an easy and cost-effective manner. An extraordinary platform that adapts to the needs of your dental practice thanks to the 2D PAN/CEPH sensor that can be easily relocated and to the reversible teleradiographic arm which can be installed on both sides. The most compact 3-in-1 hybrid system available on the market for high-quality 3D examinations.

Advantages:

- Easily upgradable to every configuration

- Reversible CEPH arm

- Relocatable 2D sensor or two dedicated sensors for PAN and CEPH

- The most compact 3-in-1 system

SKU
CEE-70A10000 3D
In stock
Enquiry

MyRay Hyperion X9 Pro 3D

MultiFOV and high resolution: wonderfull 3D images for all your radiology needs.

- MultiFOV
- 3 protocols each FOV

- Extremely high resolution (up to 68μm)

- Fast CB3D scan (up to 3.4s)

- Low dose

Exceed every expectation.

The extraordinary details of 3D imaging for your high-resolution examinations.

3D imaging takes diagnoses to a higher level, an essential dimension to give more value to your job. Thanks to a wide range of fields of view (from 4 x 4 up to 13 x 16 cm), Hyperion X9 pro is the ideal tool to meet all your clinical needs, from the analysis of tooth structures to the examinations of temporomandibular joints and ENT applications.

SuperHD diagnosis.

MultiFOV and high resolution: wonderfull 3D images for all your radiology needs.

A wide range of FOV to meet any clinical requirement: from implantology to the measurement of airway volumes, from endodontics to oral surgery. All the FOV, from the smallest to the largest, are available in three execution modes to suit every need. Just a few steps are required to identify the most suitable setting according to the selected anatomical region. The innovative selection between the three dedicated modes allows the operator to carry out examinations based on the actual diagnostic needs and with extreme ease:

- QuickScan : Faster low-dose scans for post-surgery follow-ups and macro-structure analyses.

- Standard mode : Primary diagnosis and treatment planning. The best balance between dose and quality.

- SuperHD : Exceptional level of detail, without compromise. Ideal for the analysis of micro-structures. Smart CB3D.

Reach a new level.

Simple and versatile, but also technologically advanced.

Hyperion X9 pro integrates extraordinary innovations that bring the future of 3D diagnostics to your clinic. The very best of technological evolution for 3D diagnostics in your clinic. Hyperion X9 pro is equipped with an upgraded generator designed to give you optimal results in quick time and with a 3D sensor that delivers high-quality images with low irradiated dose. This next-generation technology, combined with optimised scanning protocols, makes it possible to achieve an extraordinary 68μm resolution.

WIDE 3D CONTROL PANEL

The technologically-advanced 3D control panel stands out for its exceptional sensitivity which allows for extremely detailed examinations. Volumes of complete dentition and upper airways in SuperHD quality for accurate diagnoses at all times.

UPGRADED GENERATOR

The constant potential generator, equipped with a focal spot of just 0.5mm, optimises exposure thanks to the pulsed emission technology thereby ensuring the best results with the lowest irradiated dose.

FAST 360-DEGREE SCAN

The main advantage of 360-degree scanning is a considerable reduction of artifacts. Hyperion X9 pro combines this type of acquisition with extremely fast execution times. In just 14” it is indeed possible to carry out complete high-resolution examinations at low X-ray doses: excellent quality, detailed particulars, fast diagnosis.

Specification

3D IMAGES

FOV 10x8 VERSION

FOV 13x16 VERSION

Detector technology

Amorphous silicon - CsI with direct deposition

Amorphous silicon - CsI with direct deposition

Dynamic range

16 bit (65535 livelli di grigio)

16 bit (65535 grey levels)

Typical scan time

14,4 s

14,4 s

Rotation

360°/180°

360°/180°

Image voxel size

Minimum 75 μm

Minimum 68 μm

Field of view, diameter x height

108 x 80 mm

108 x 50 mm

Available FOV sizes (Øxh)

6x6 - 8x6 - 8x8 - 10x6 - 10x8

6x6 - 8x6 - 8x8 - 10x6 - 10x8 10x10 - 13x8 - 13x10 - 13x16 4x4 - 7x6 (eXtended Functionality)

Typical image size

495 MB

820 MB

Minimum scan time

6,4 s

3,6 s

Typical X-ray exposure time

1.6 s (Low-dose QuikScan) - 8.0 s (SuperHD Mode)

1.6 s (Low-dose QuikScan) - 8.0 s (SuperHD Mode)

Patient alignment

Servo-assisted: Scout View method

Servo-assisted: Scout View method

Image format

Exclusive iRYS and DICOM 3.0 software

Exclusive iRYS and DICOM 3.0 software

Minimum render times for CB3D data

15 s on average

On average, real-time for FOV XF 4x4 QuickScan



CONNECTIVITY

Connections

LAN / Ethernet

Software

MyRay iRYS and App iPad

Supported protocols

DICOM 3.0, TWAIN, VDDS

DICOM nodes

IHE- compliant (Print; Storage Commitment; WorkList MPPS; Query Retrieve)
