MyRay Hyperion X5 2D/3D

3D/2D version

Type of generator Constant potential (DC)
Anode voltage 60 kV – 85 kV (1kV step); 90 kV (Pulsed mode)
Anodic current 4 mA - 15 mA

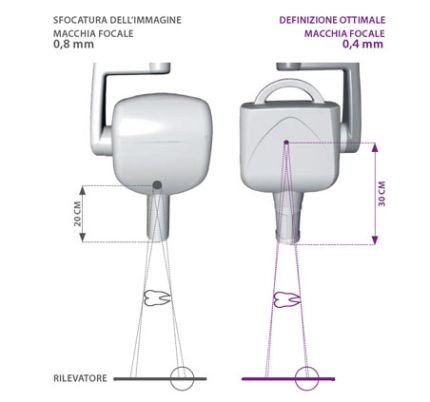

Focal spot 0.6 mm (IEC 60336)
Inherent filtration 6 mm Al eq. (a 90 kV)
Exposure control Automatic. MRT (Morphology Recognition Technology).
Maximum continuous anode input power 42W (1:20 at 85kV/10mA)
Voltage/Frequency 115 - 240 Vac, ± 10% single phase | 50 / 60 Hz ± 2 Hz
Maximum absorbed surge current 20A at 115V; 12A at 240V
Current consumption in standby mode Maximum 0.5 A (240V);1A (115V)
Notes Automatic adaptation for voltage and frequency
Detector type Amorphous Silicon (CSI)
Dynamic range 16 bit (65535 grey levels)
In stock

Easy 3D/2D Diagnostics

Hyperion X5, the only suspended imaging system, easy to install and use, can bemounted on any wall suitable for housing an intraoral X-ray system.

Quick and easy to use at every stage of the examination, this system ensures high resolution 3D and 2D images and low emission times plus fast data processing for real time diagnosis and improved patient communication.

Build aroud your needs

Optimal use of space, time and diagnosticprocedures is now possible thanks to innovative Hyperion X5 technology. Complete, accurate and fast 3D/2D diagnoses, all in one device, ready for immediate use. Enhanced patient communication through illustration of the necessary treatment directly in your surgery. High quality materials and device simplicity mean maximum, long-lasting reliability.

*Compact and Light

*Plug and Play


*Easy to use

*Real-Time Diagnostics

*Mini Budget

Versatile diagnostics

The 3D/2D system offers the best response to your diagnostic needs. Flexible, efficient, fast. Cutting-edge high definition 3D technology and fast-scan 2D MultiPAN. Maximum results with minimum times and low X-ray doses.

- Suitable for all diagnostic needs

- Clever collimators

- Up to 22 2D programmes

- A single 3D/2D-QuickScan sensor


From 2D to 3D, all the diagnostic potential you need. From adults to children, in just a few simple steps. Adapts field of view and doses to actual diagnostic requirements. Intelligent MultiFOV collimation, from the entire dentition (10x10cm) to just a small portion (6x6cm). Choose, according to diagnostic requirements, between HD (80μm) or low-dose QuickScan (160μm) protocols.


Advanced 2D image processing system lets users extract and analyse 5 different panoramic images from a single scan. Particularly useful for analysing patients with complex anatomies and/or virtually correcting postcapture patient positioning.

Always by your side.

Maximum one-touch performance. Hyperion X5 simplifies your work by allowing extremely fast scans that give real-time images at minimum X-ray doses. Easy for you, comfortable for the patient.

View everywhere

Store, manage and share images with all surgery PCs and tablets thanks to the Ethernet connection, the Apps and the powerful iRYS platform which also interfaces with third party systems.
